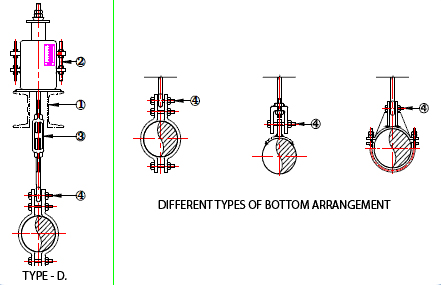

VARIABLE LOAD SPRING HANGER SUPPORT ( TYPE – D)


DESCRIPTION :

(1) DIFFERENT TYPES OF TOP ARRANGEMENT ARE SHOWN IN THE FIGURE, FIX UP THE SPRING SUPPORT WITH THE RIGID STRUCTURE AS PER SHOWN FIGURE.
(2) REMOVE THE PRESET STUDS & NUTS AFTER HYDRO TEST BUT BEFORE THE OPERATION STARTS.
(3) INSTALLATION HEIGHT CAN BE ADJUSTED THROUGH  ROTATING THE TURN BUCKLE IN LH/RH DIRECTION.
(4) DIFFERENT TYPES OF LOWER ARRANGEMENT ARE SHOWN IN THE FIGURE, FIX UP THE SPRING SUPPORT WITH THE PIPE LINE ON ITS AXIS AS PER SHOWN FIGURE.


INTRODUCTION MANUAL OF VARIABEL LOAD SPRING HANGER SUPPORTS TYPE 'D'
